OneGuide Kit


Why OneGuide?

digital.svg

Accurate

Precise drilling enabled by computer-aided implant planning, simulation, and custom surgical guide template

short-surgery-time.svg

Quick Surgery

Flapless surgery, no need for incision and suture and possible to place implant with only 2-4 drilling steps

idea-easy-lightbulb.svg

Beyond the Limit

Open Guide enables easy entrance of drill into the guide template for Patients with limited intermaxilary space

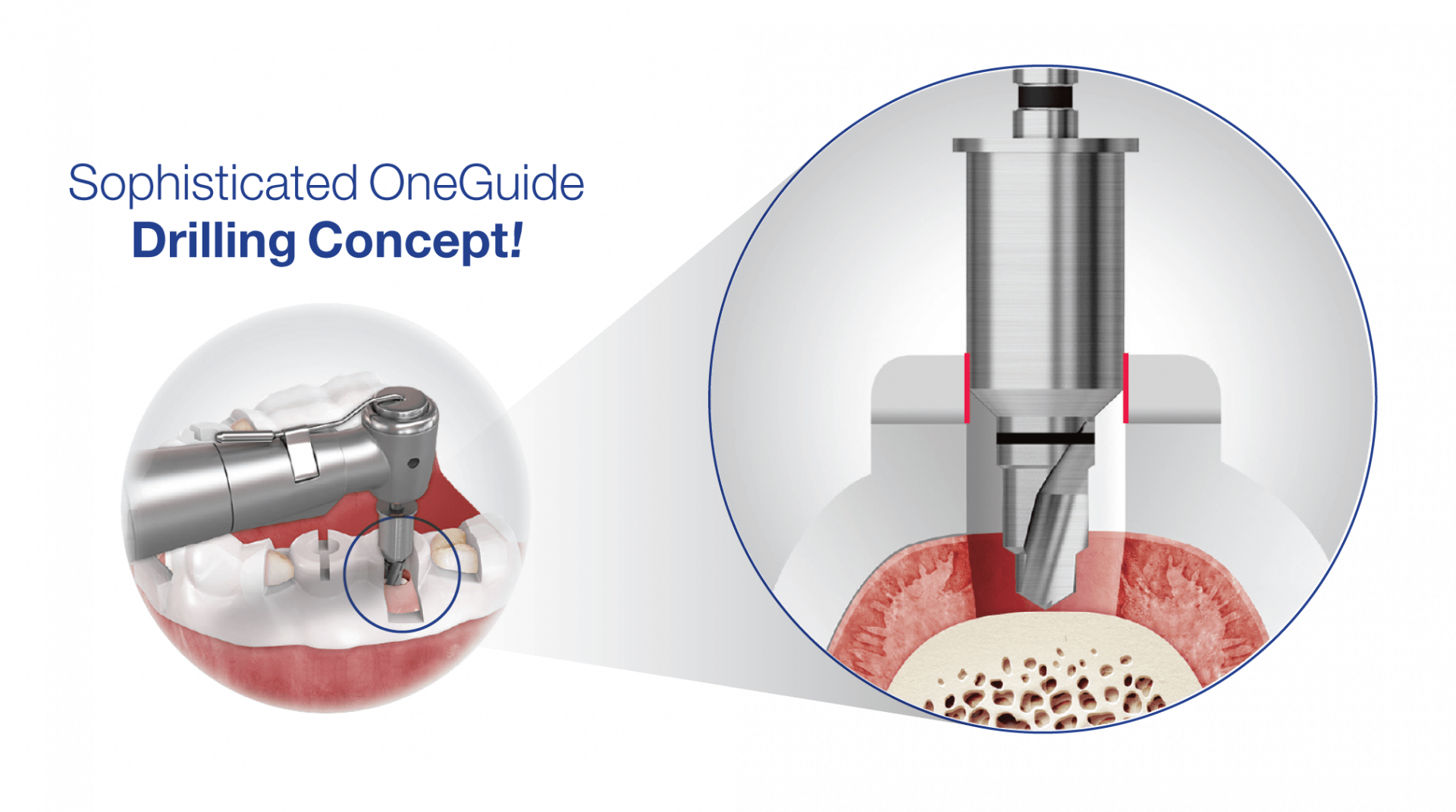

3D Static Guided Surgery for Outstanding Surgical Precision and Convenience

This keyless guided surgery kit is designed to be as simple and as safe as possible. Featuring several precise drilling tools and guide development from Osstem Implant, this kit allows for more accurate, efficient and safe surgery with minimal error and drill heating.

  • Shortened drilling steps to implant placement by adopting Taper 122 concepts
  • Possible to implant posterior teeth in spite of interocclusal space limitation through side open guide
  • Reduced drill vibration for precise drilling
  • Faster surgery without worrying about overheating

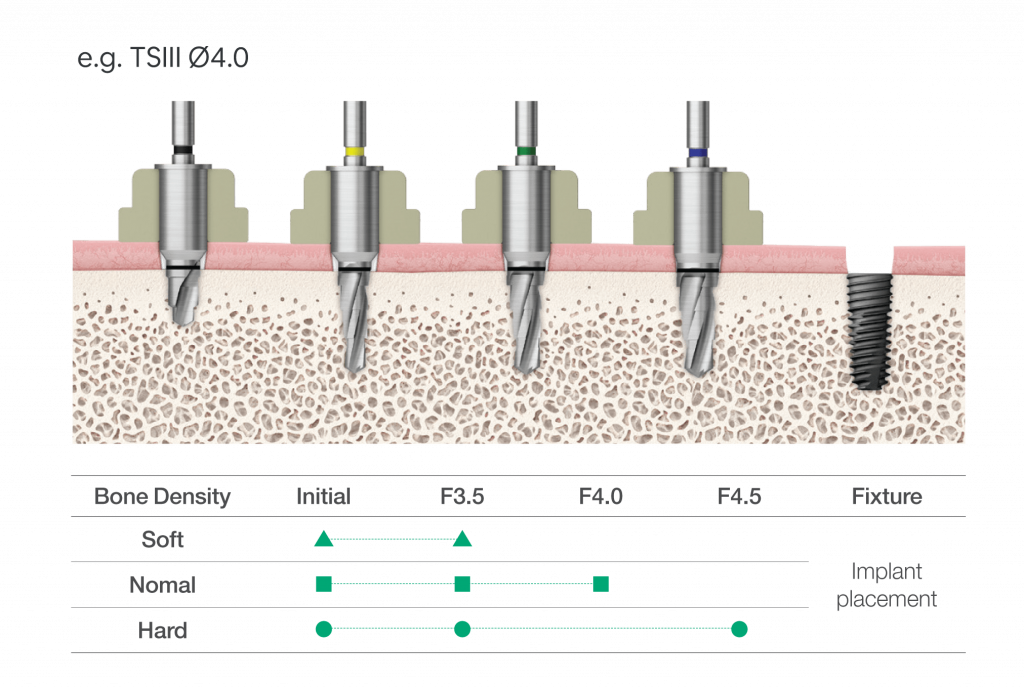

Innovation 1.

Shortened drilling steps to implant placement by adopting Taper 122 concepts


  • Possible to place implant after only 2-4 drills depending on bone quality

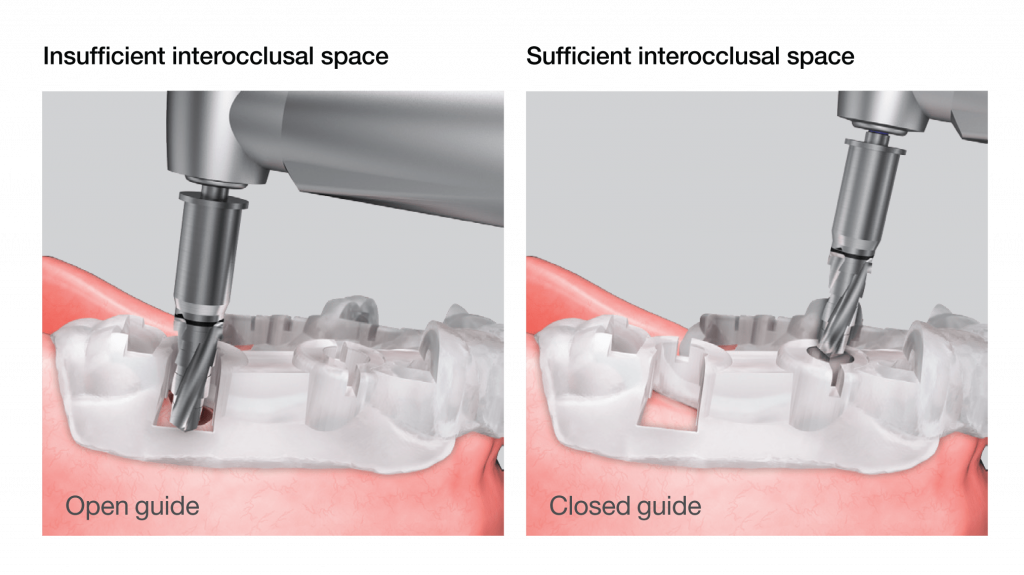

Innovation 2.

Possible to implant posterior teeth in spite of interocclusal space limitation through side open guide

  • As the drill is inserted through side window according to patients oral status, possible to solve interocclusal space limitation
  • Required interocclusal space: OneGuide-30mm, Conventional guide-51mm
  • Available to choose open or closed sleeve guide if required

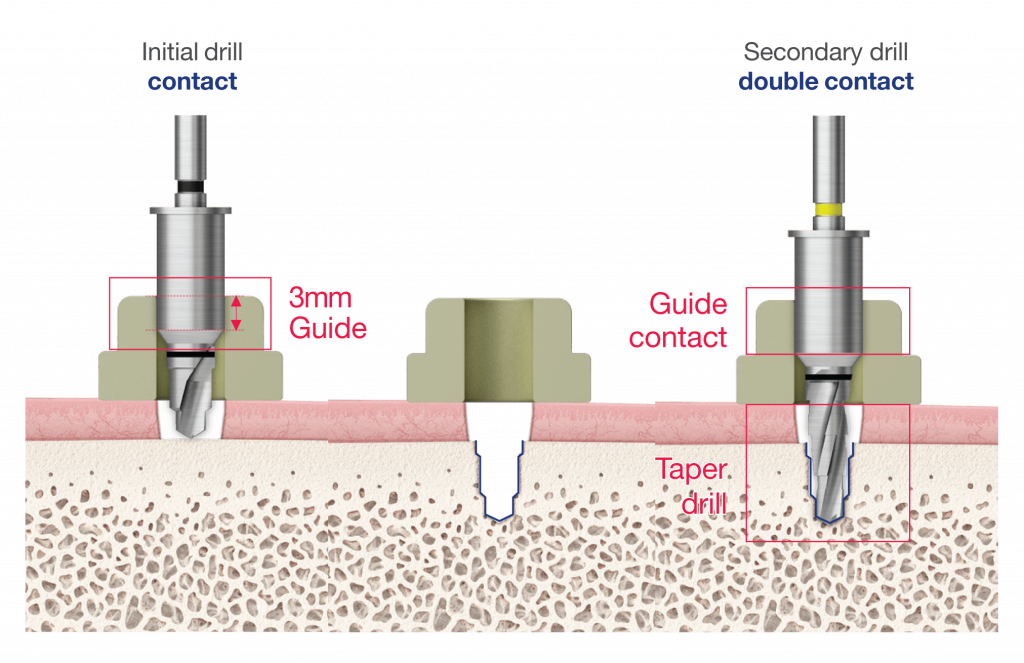

Innovation 3.

Reduced drill vibration for precise drilling

  • Initial drilling : Precise drilling as the drill can be contacted with guide area within 3mm.
  • Secondary drilling : Precise drilling with reduced vibration as the drill is in contact with the guide as well as the osteotomy supplying double barrel drill contact anchorage

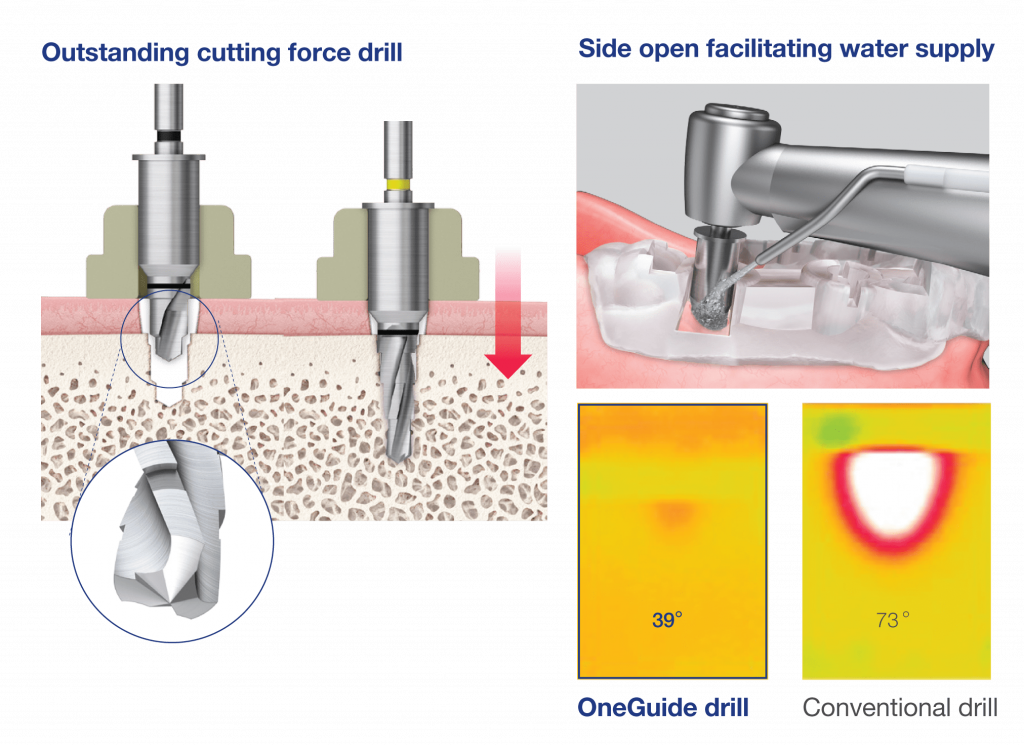

Innovation 4.

Faster surgery without worrying about overheating

  • Unique drill shape with high cutting force (Rec 800-1200rpm) for reduced drilling time leading to reduced inner osteotomy heat generation reducing risk of bone necrosis
  • Open sleeve side entry guide facilitates easy irrigation during drillinge

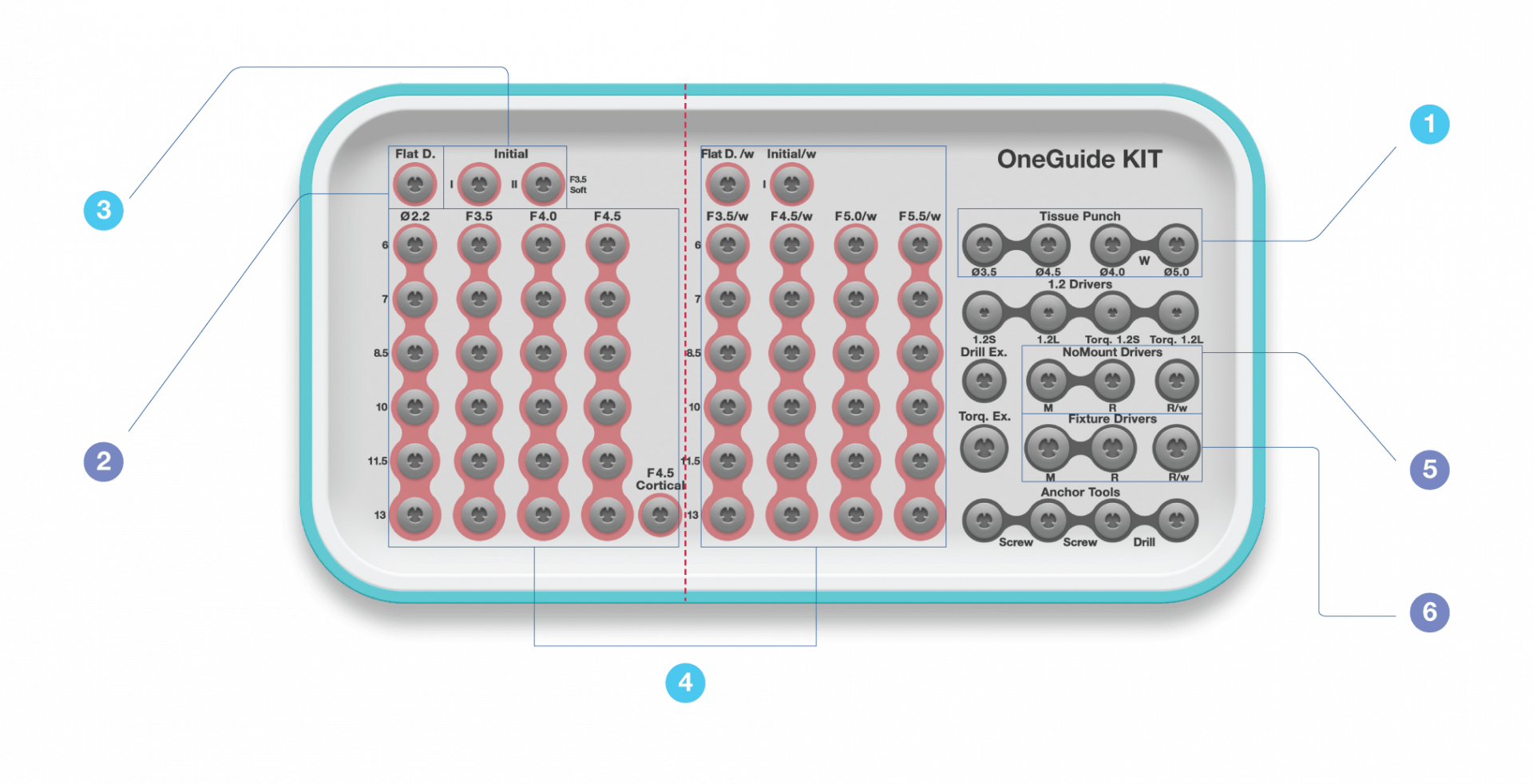

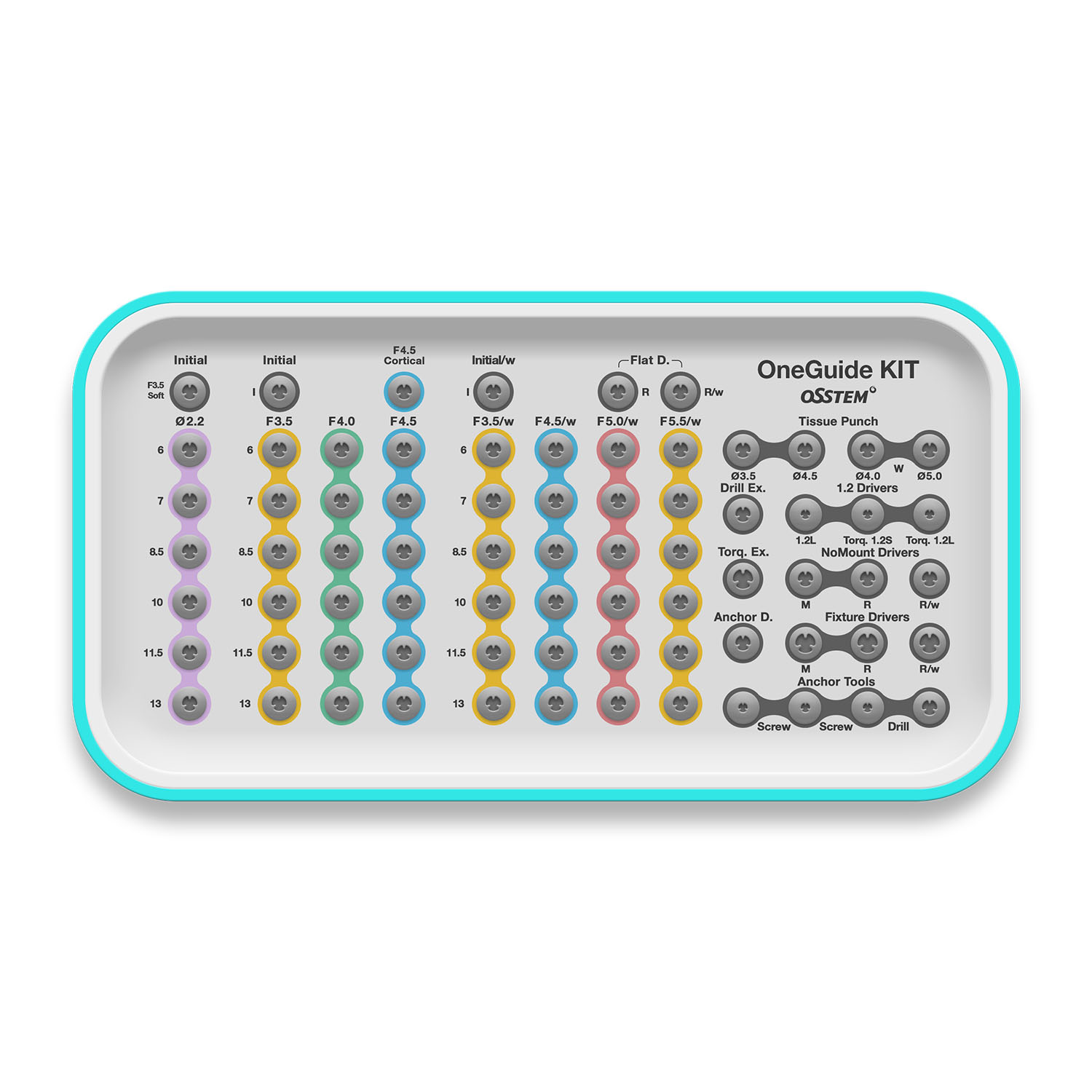

Kit Components


  • 1. Tissue Punch
    • Used only for Tissue cutting/punching

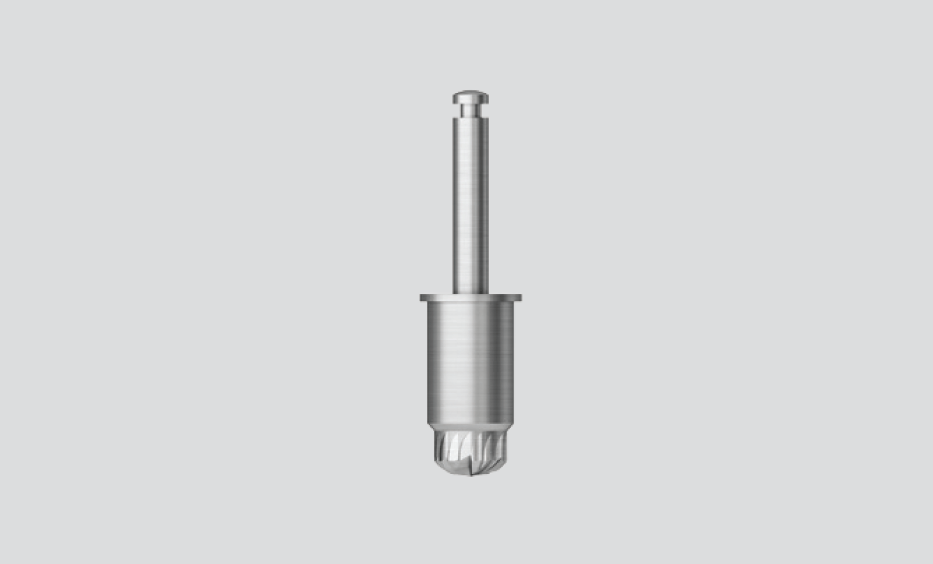

  • 2. Flattening Drill
    • Used to flatten the ridge
    • Enables stable drilling with reduced vibration
    • Reduces risk of off-angle drilling
    • 2Types : Flat R for implants <4.5mm and Flat R/w for implant >4.5mm

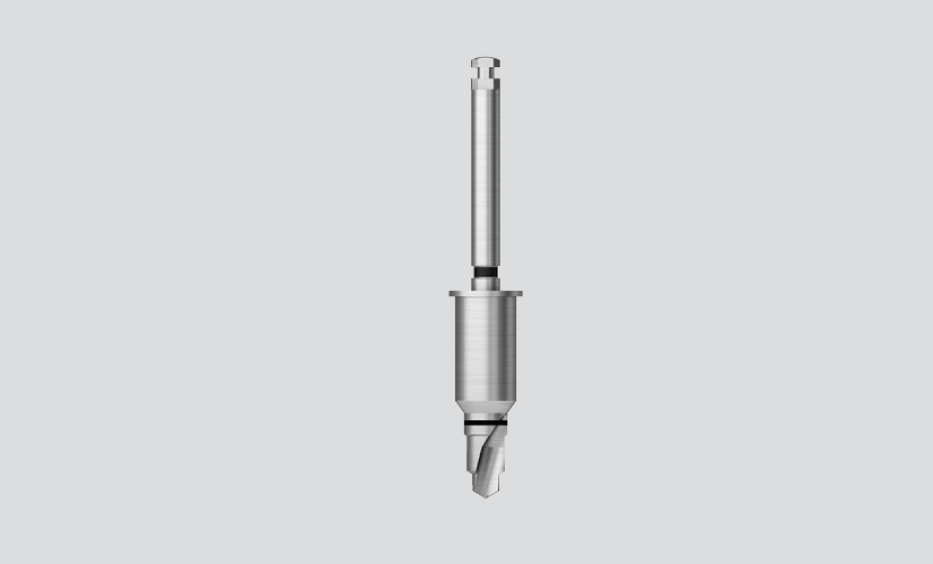

  • 3. Initial Drill
    • Indicates drilling and implant positioning
    • Ensures adequate osteotome depth for double barrel drill contact for secondary drills
    • 3 Types: Initial soft (2.2mm), Initial (3.5mm) and Initial Wide (3.5mm)

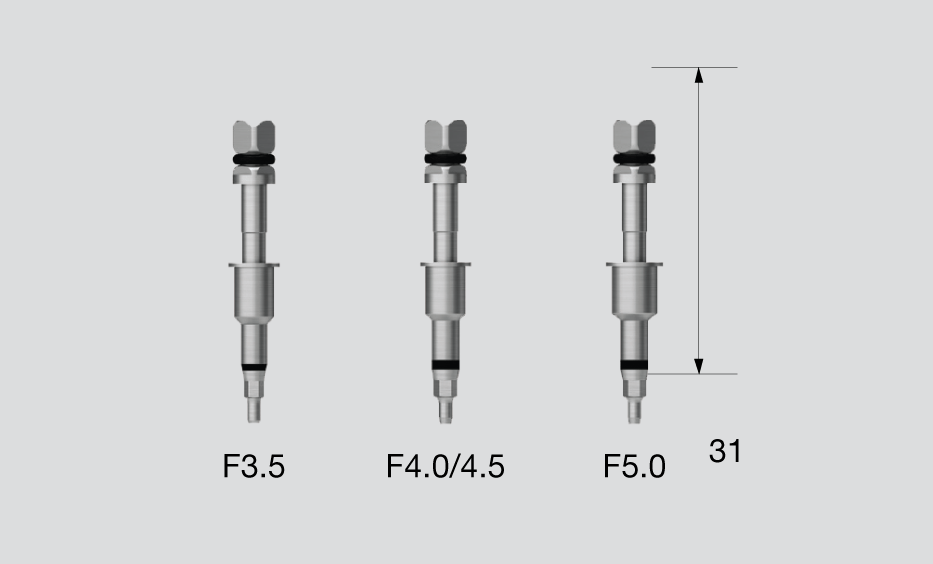

  • 5. NoMount Driver
    • Easy fixture pick up with unique retention tip
    • Reduced risk of dropping fixture
    • Only for initial implant placement with implant handpiece

  • 4. OneGuide Drill
    • The taper drill optimized for TSIII/IV fixture (possible to place implants diameter Ø3.5~5.0, length 6~15mm fixture)
    • Stable drilling with unique drill profile
    • 2 Types: R Drills for implants under 4.5mmD, R/w Drills for implant 5.0mmD

  • 6. Fixture Driver
    • Enables final fixture positioning by hand using torque wrench

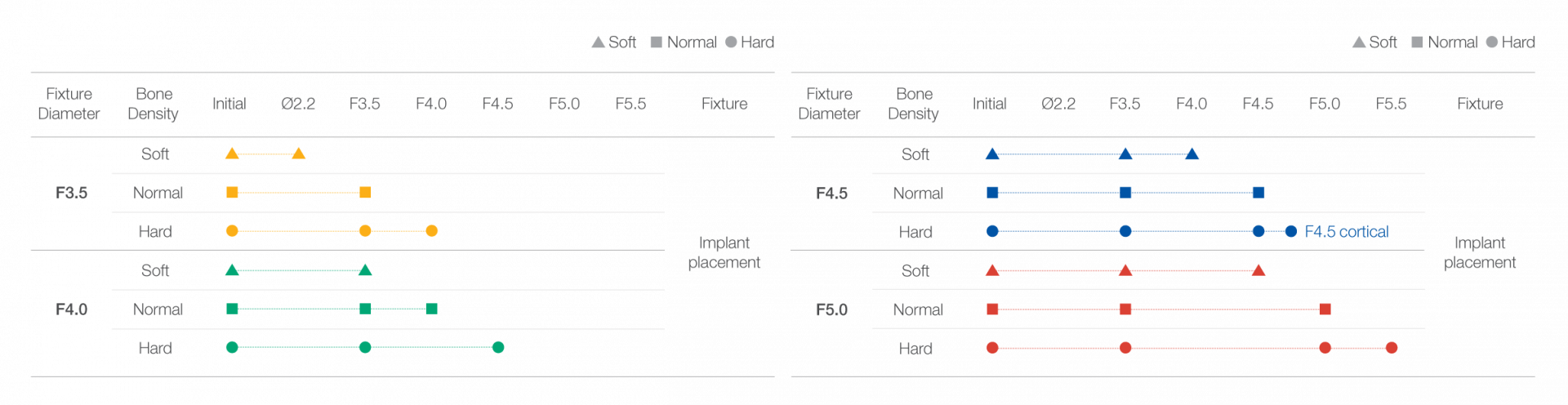

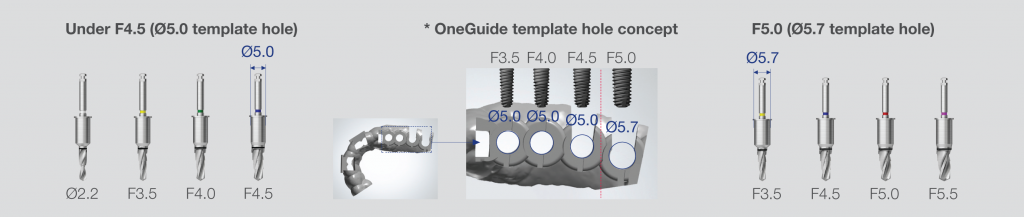

    Drilling Sequence

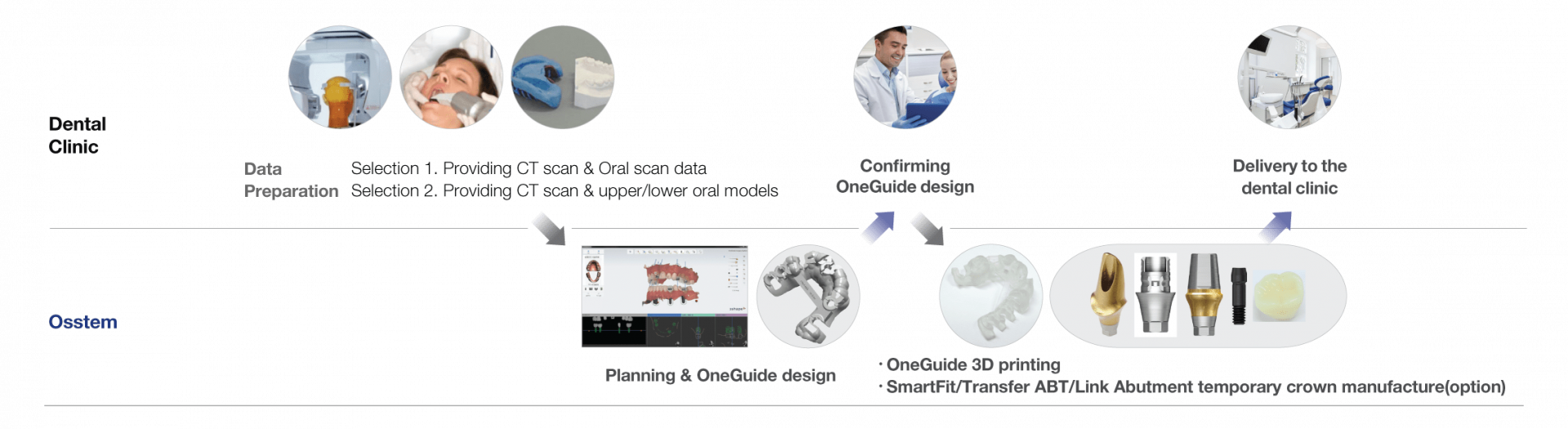

    Workflow
