With the combination of stopper and unique drills, easy and safe window formation is available



Bone lid created during the drilling prevents the membrane from direct contact with the drill and damage


Two options

Depending on the patient condition and the clinician preference, Dome Drill and Core Drill are available

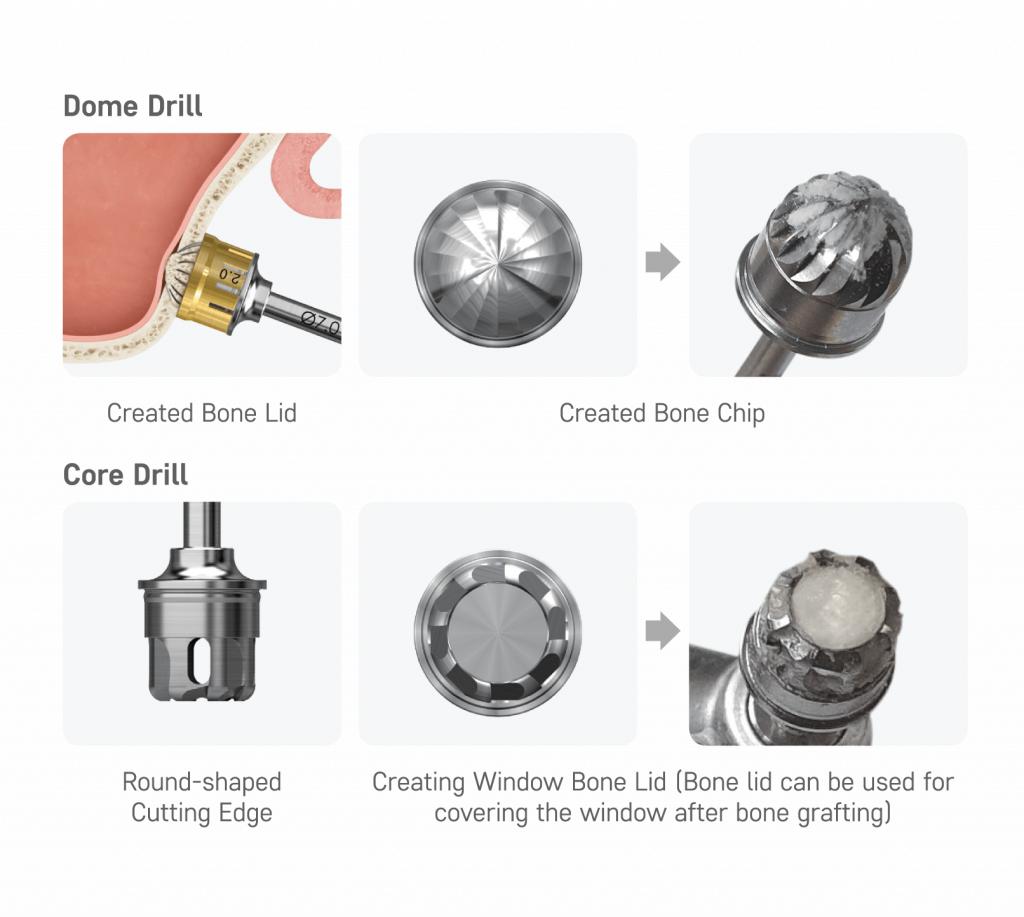

Prevents Perforation of Sinus Membrane
  • Bone chips and bone lid are gathered during the drilling procedure which minimizes direct touch of the drills to the membrane and therefore making window formation much safer

  • LAS drills can be drilled from 400 to 800 RPM and used on several different bone densities. ​

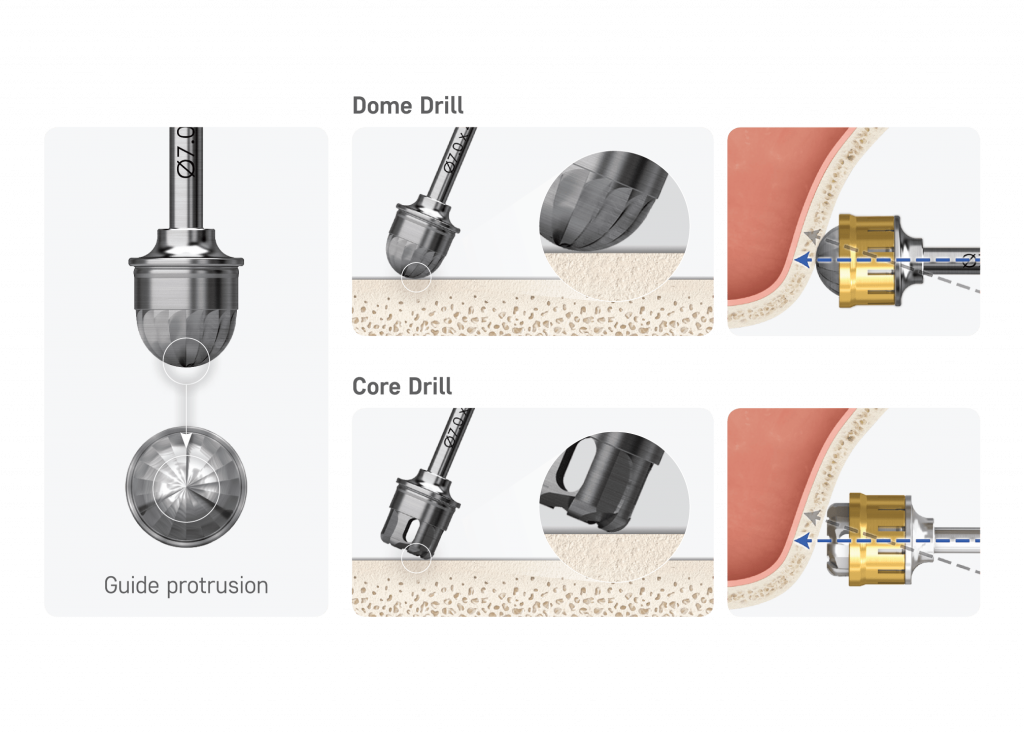

Good Accessibility and Convenient Surgery by Stable Drilling Performance
  • The Guide contributes to safe surgery by preventing slips and kickbacks.
  • Good accessibility of the drills make surgery for sites, that are difficult to approach due to limited space, possible

  • The easy-to-use kit is designed to minimise the number of steps involved in a sinus lift surgery, reducing overall chair time, complications, and patient discomfort.

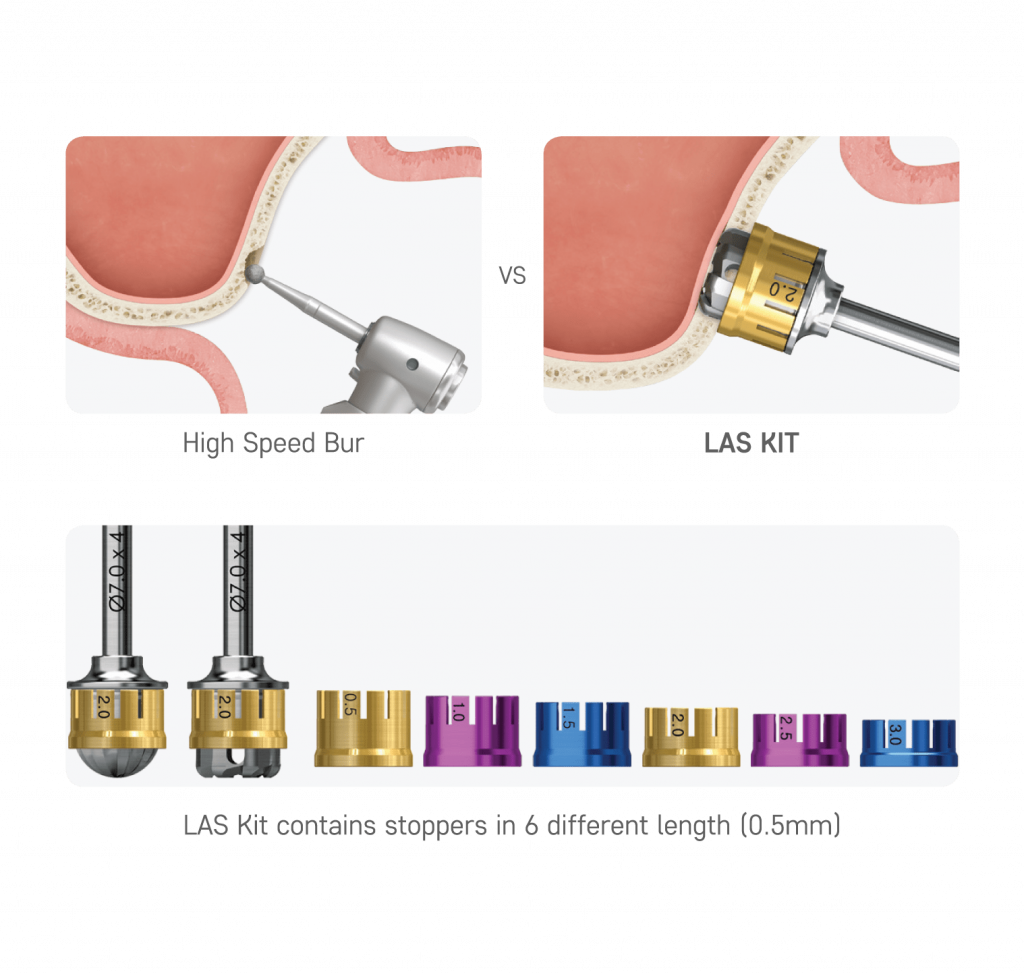

Safe and Easy Way to Form Window
  • Unlike difficult conventional method of using a high speed bur, the LAS drills in combination with the stoppers make window formations for beginner possible

  • The drill design is highly versatile, allowing it to be used on sinus floors that are flat, inclined or over a septum.

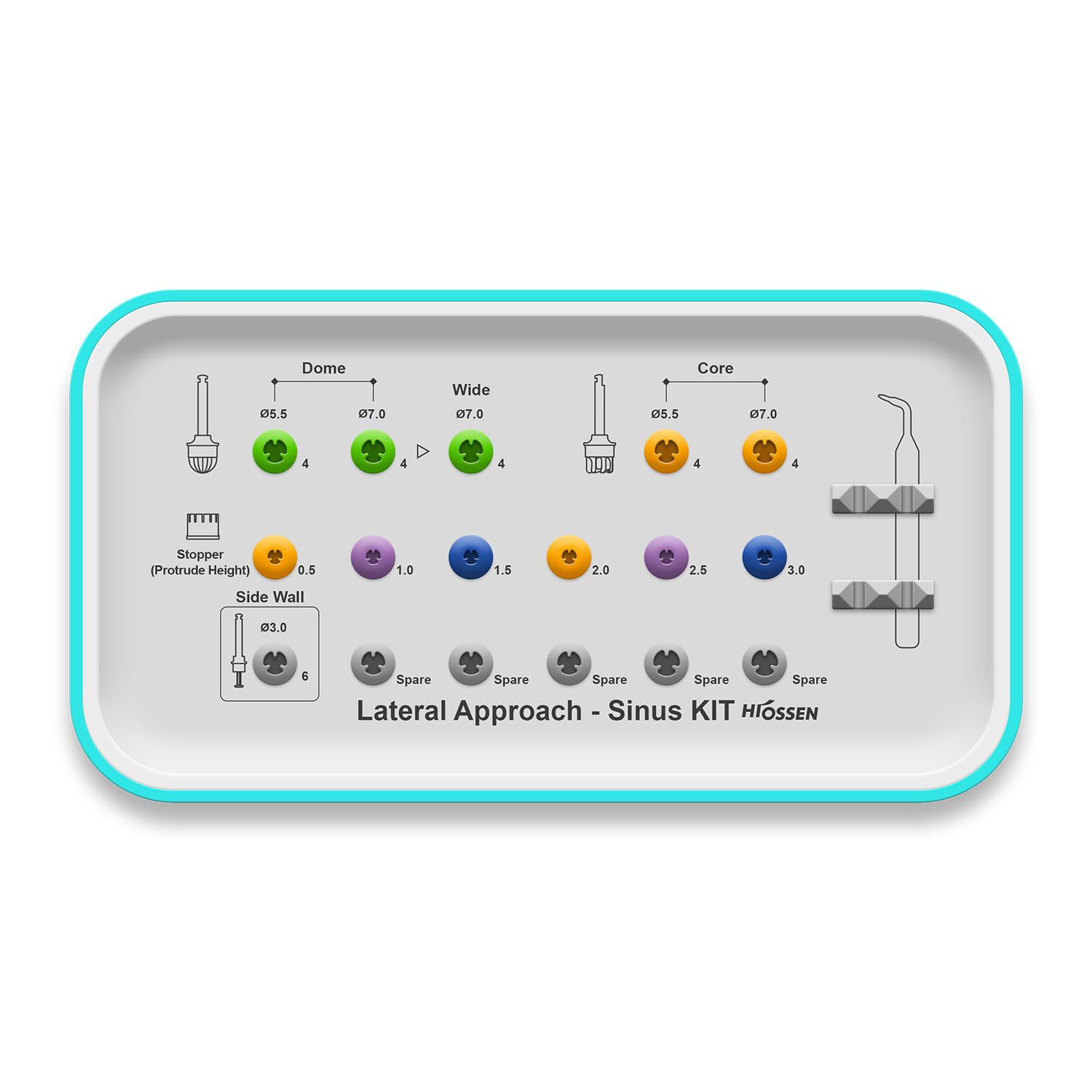

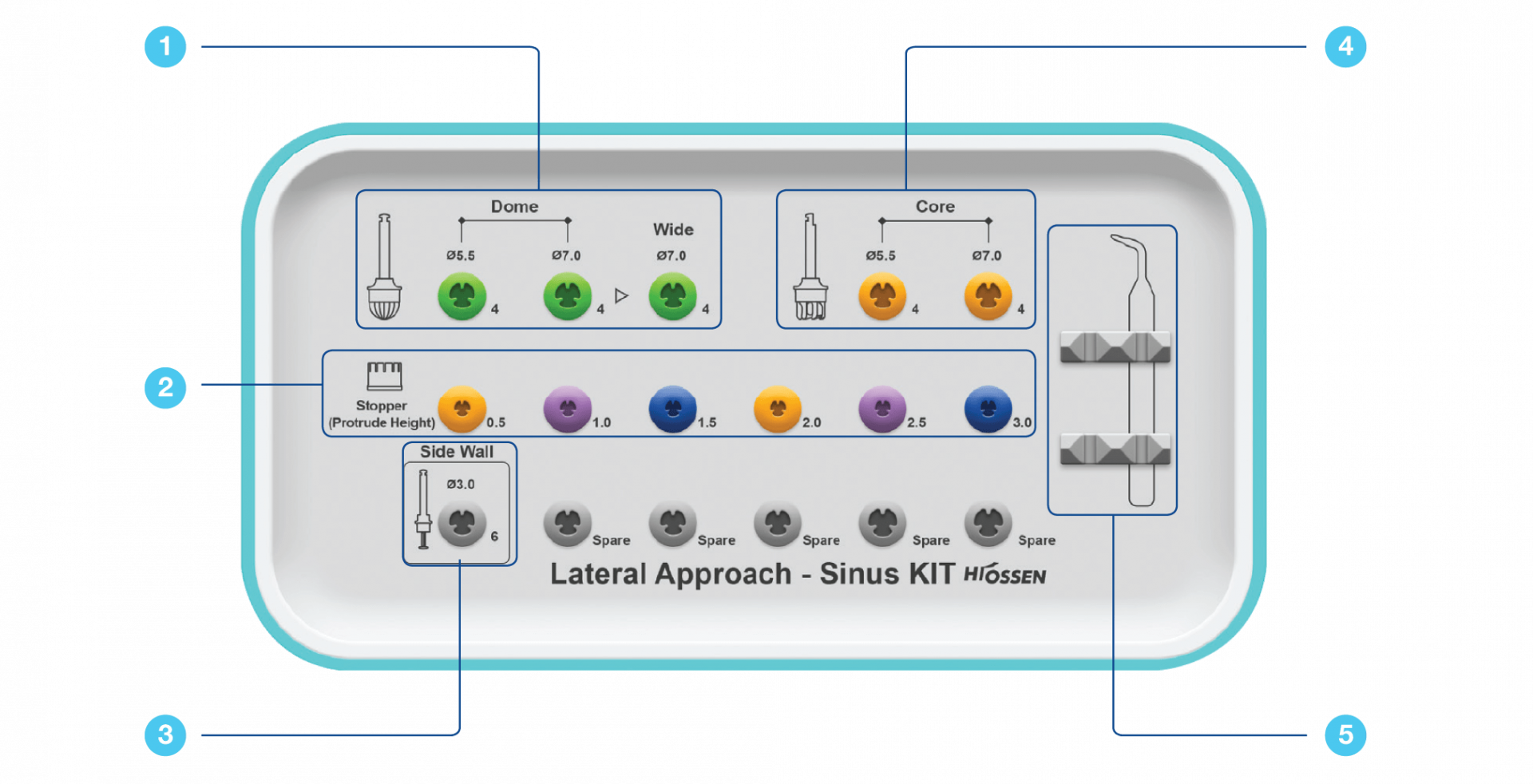

Components of LAS KIT

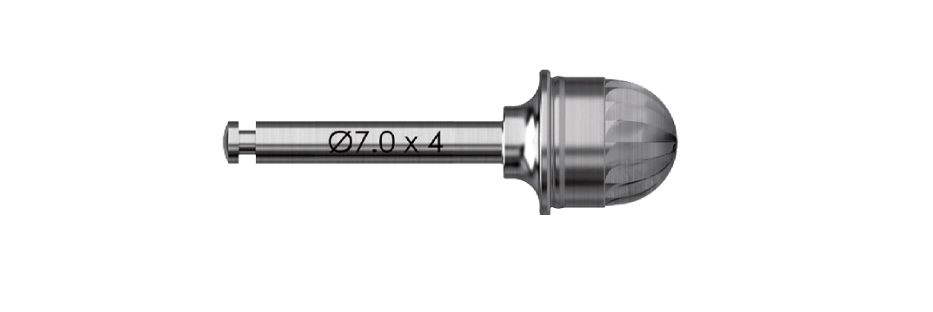

  1. Dome Drill
  • Window is created by grinding bone in a quick and easy manner without membrane damage
  • Cutting force is enhanced by the combination of Macro and Micro cutting blades

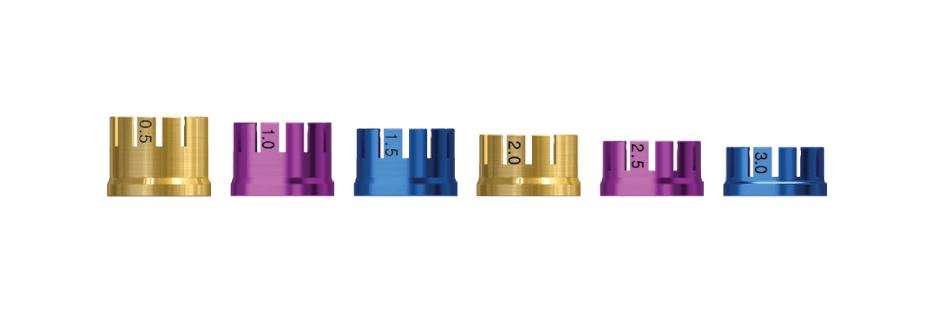

  1. Stopper
  • Controls the drilling depth of the LAS drills for safe membrane lifting
  • The numbers on the stoppers indicate the height of the components’ protruded part
  • Different color codings by length

  1. Side Wall Drill
  • Enlarges the window which was formed with a Dome drill
  • Cutting blades start from 1mm below the tip
  • The tip’s dome-shape design prevents damages to the membrane

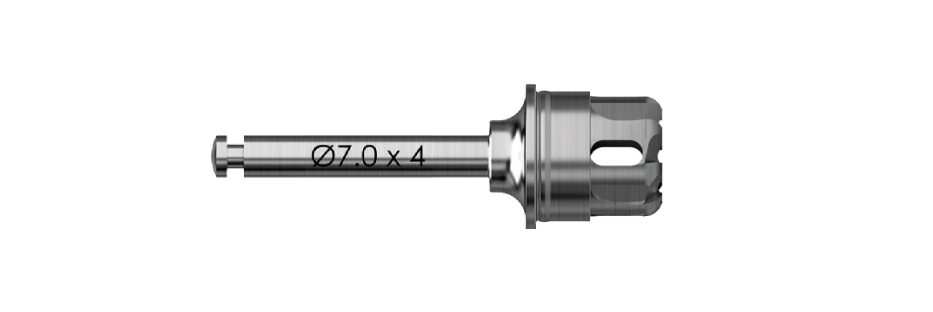

  1. Core Drill
  • Forms window in a quick and easy way, as it generates bone lid without damaging the membrane
  • Bone chips are gathered between the cutting blades

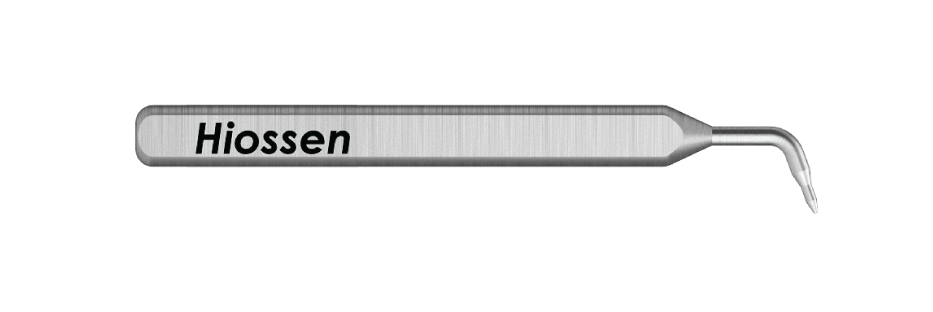

  1. Bone Separator
  • Removes the bone lid that are collected in the core drill
