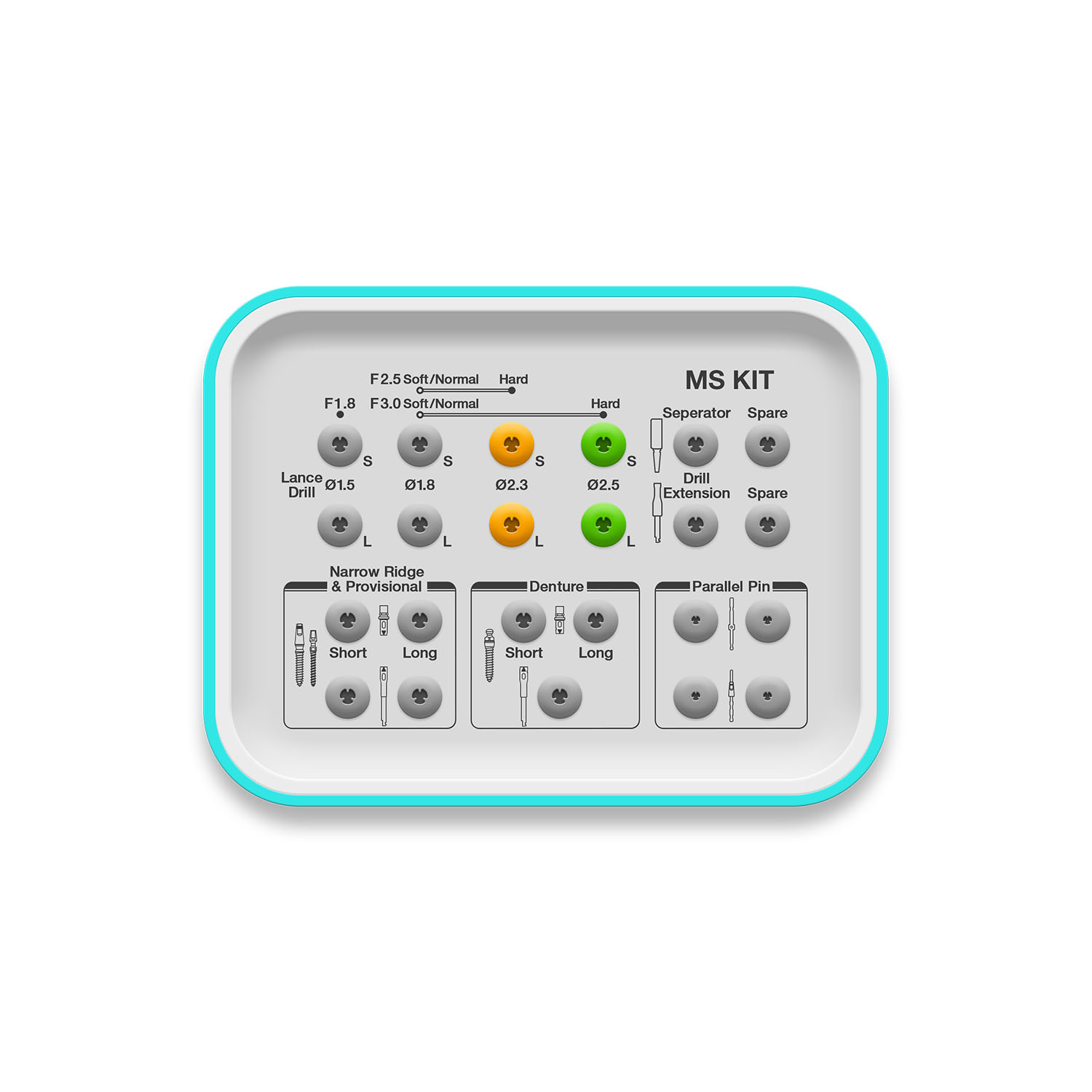

MS Kit


Why MS Kit?

easy-evaluation.svg

Perfectly Designed

Specifically developed for MS implants

simple-fingersnap.svg

Simple

Easy to use even in closely spaced teeth

checking.svg

Convenient Path Check

The drilling path can be easily checked and corrected with parallel pin.


Perfectly Designed for MS Implants

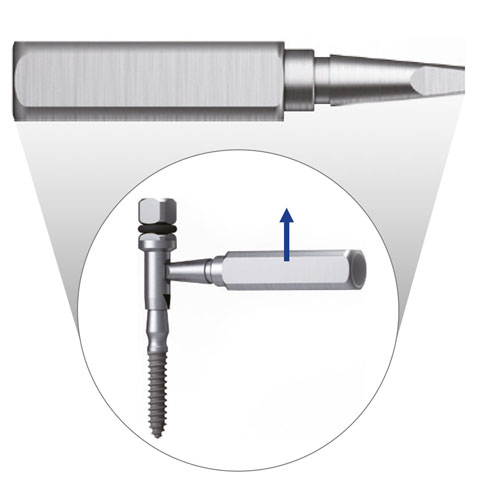

Driver Separator
  • Is used to separate the driver if it jams during implant placement

Drill Extension
  • Extension of drill and other handpiece tools ( 16.9mm)

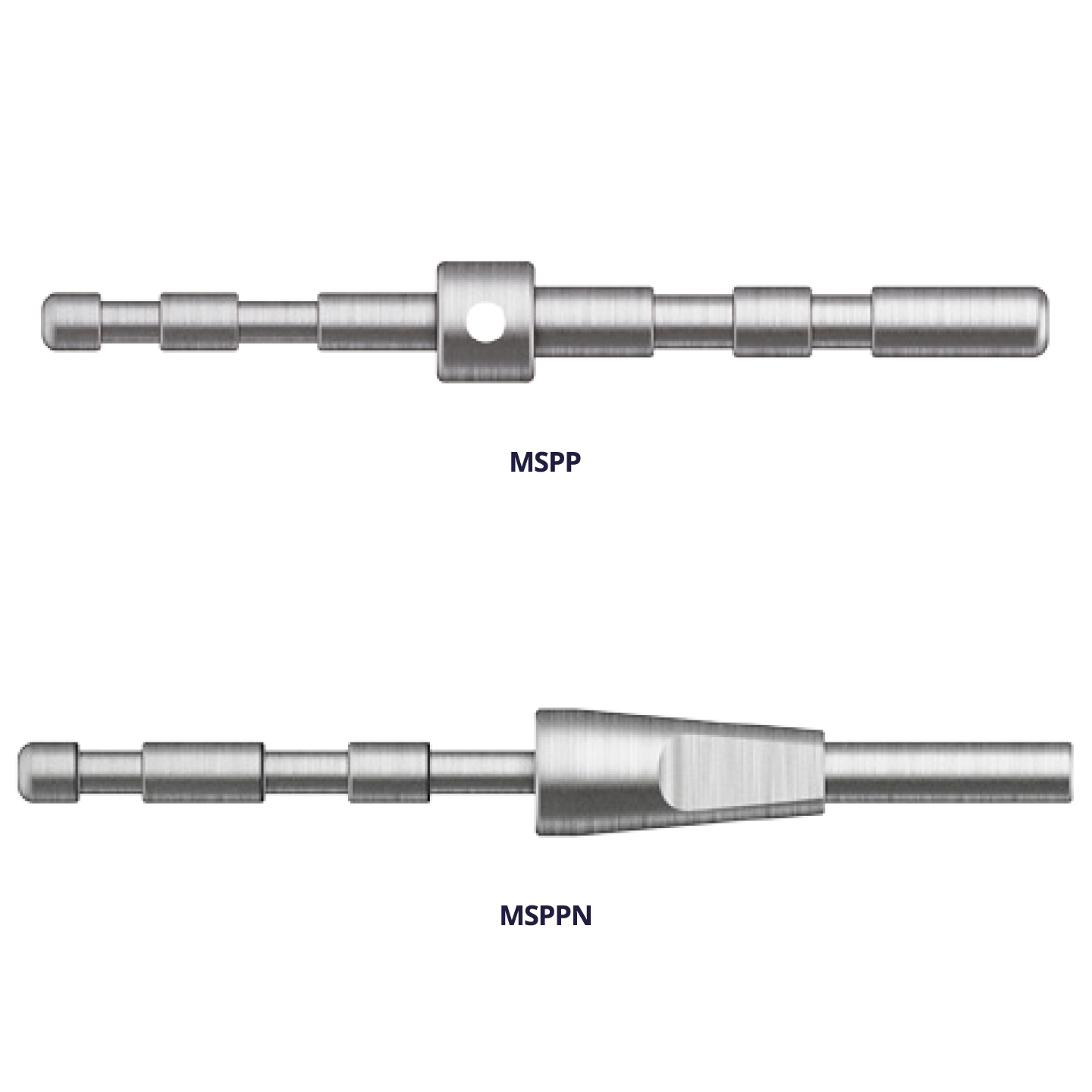

Parallel Pin
  • A tool to check if the drilling hole is formed with desired depth and path after initial drilling
  • MSPP : Bottom part diameter Ø1.5 / Top part diameter Ø1.8
  • MSPPN : Bottom part diameter Ø1.5 / Top part shape is the same as MS Narrow Ridge

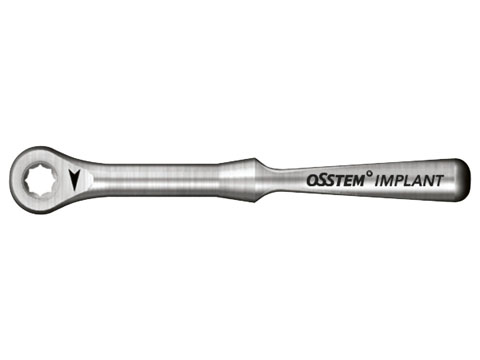

Ratchet Wrench
  • Wrench that can apply torque without restriction
  • Be careful of internal damage of bone or implant when excessive torque is applied

For Narrow & Provisional Type

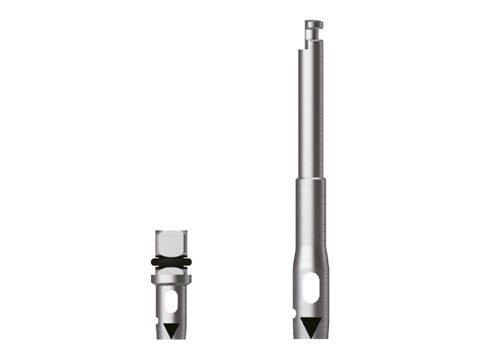

For Denture Type

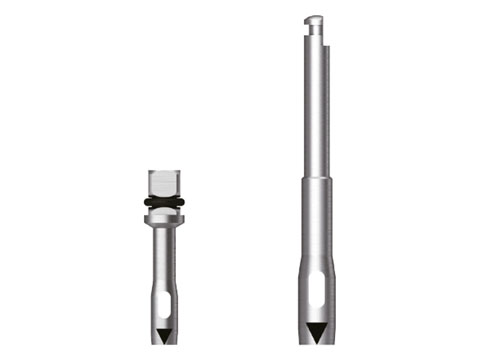

Torque Driver / Machine Driver
  • Exclusive driver for narrow ridge type & provisional type
  • Use triangle marking to align with the flat surface of implant head
  • For narrow ridge & provisional type and denture type

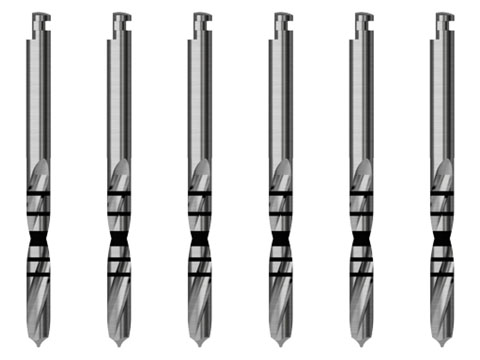

High Quality Twist Drills
  • Straight Non-stopper drill
  • Specification : Ø1.8 – S/L   Ø2.3 – S/L   Ø2.5 – S/L
  • Recommended speed : 1,200 ~ 1,500rpm
