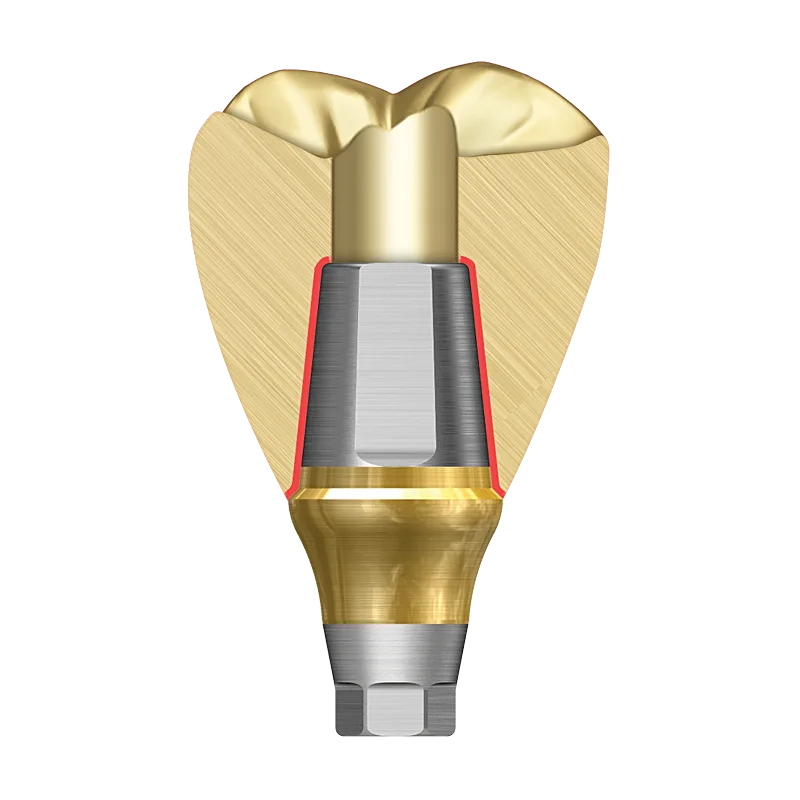

Retention Type
Screw-cement-retained
Angled Abutment
Implant placement angle compensated up to 23° without removal
Indication:
Bridge | Single-unit
Retention Type:
Cement-retained | Screw-cement-retained
Impression Level:
Implant Level
Material:
Ti-6Al-4V
Convertible Abutment
Implant placement angle compensated up to 60°
Indication:
Bridge | Full-Arch | Single-unit
Retention Type:
Bar Frame | Cement-retained | Screw-cement-retained | Screw-retained
Impression Level:
Abutment Level
Material:
Ti-6Al-4V
FreeForm ST Abutment
Used for adjusting the shape of the abutment margin
Indication:
Bridge | Single-unit
Retention Type:
Cement-retained | Screw-cement-retained
Impression Level:
Implant Level
Material:
Ti-6Al-4V
GoldCast Abutment
Used for fabrication of customized prosthesis by casting with gold alloys (Melting temperature: 1.400~1.450°C)
Indication:
Bridge | Single-unit
Retention Type:
Cement-retained | Screw-cement-retained | Screw-retained
Impression Level:
Implant Level
Material:
Au-Pt alloy + POM
Link Abutment for Cerec®
Manufacture of milled zirconium or titanium abutments with the Cerec®-system
Indication:
Bridge | Single-unit
Retention Type:
Cement-retained | Screw-cement-retained | Screw-retained
Impression Level:
Implant Level
Material:
Ti-6Al-4V
Link Abutment for Public
Used for fabrication of Ti+Zr custom abutment with CAD/CAM equipment. Available as open-Type and Cylinder-Type.
Indication:
Bridge | Single-unit
Retention Type:
Cement-retained | Screw-cement-retained | Screw-retained
Impression Level:
Implant Level
Material:
Ti-6Al-4V
Multi Abutment
Producing prosthesis with aesthetic-low cylinder (regular/non-hex)
Indication:
Bridge | Full-Arch | Overdenture | Single-unit
Retention Type:
Bar Frame | Cement-retained | Screw-cement-retained | Screw-retained
Impression Level:
Abutment Level
Material:
Ti-6Al-4V
Multi Angled Abutment
Implant placement angle compensated up to 108°
Indication:
Bridge | Full-Arch | Overdenture | Single-unit
Retention Type:
Bar Frame | Cement-retained | Screw-cement-retained | Screw-retained
Impression Level:
Abutment Level
Material:
Ti-6Al-4V
NP-Cast Abutment
Used for fabrication of customized prosthesis by casting with nonprecious metal alloys (Melting temperature: 1.400~1.550°C)
Indication:
Bridge | Single-unit
Retention Type:
Cement-retained | Screw-cement-retained | Screw-retained
Impression Level:
Implant Level
Material:
Co-Cr-Mo alloy + POM
Quick Temporary Abutment
Used for producing temporary prosthesis for immediate loading
Indication:
Bridge | Single-unit
Retention Type:
Cement-retained | Screw-cement-retained | Screw-retained
Impression Level:
Implant Level
Material:
Ti-6Al-4V + medical PEEK
Temporary Abutment
Enables temporary fixation to the implant without screws by adding the hex holding structure
Indication:
Bridge | Single-unit
Retention Type:
Cement-retained | Screw-cement-retained | Screw-retained
Impression Level:
Implant Level
Material:
Ti CP-Gr3
Transfer Abutment
Straight, for crowns & bridges
Indication:
Bridge | Single-unit
Retention Type:
Cement-retained | Screw-cement-retained
Impression Level:
Abutment Level | Implant Level
Material:
Ti-6Al-4V
